SVG import/export in future versions

Published by on August 30th 2022.

SVG is a file format used for storing vector images (and more). It is used widely on the web and, in recent years, its use in software has grown as well. In certain situations, it replaces classic raster icons. Future versions of RealWorld Paint and RealWorld Icon Editor will be able to import SVG and the export plug-in will be more capable.

YouTube stream on Sep 1st

The upcoming YouTube stream will be mainly about SVG and starts on September 1st at 7PM CET (that is 10AM..1PM in America) Here is a link to the stream: https://youtu.be/-ArX1wM-hMU

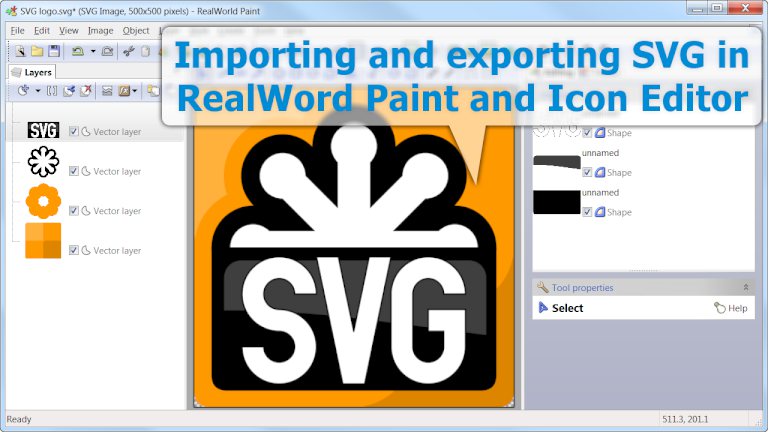

rsrc/svg-import-export.jpg image

What can be imported?

SVG is quite complex and not every SVG file will import perfectly, but the compatibility should be decent and a large percentage of SVG files found on web will be usable.

Imported elements

  • Rectangles, Ellipses - except rounded rectangles with different corner radii (radius will be unified).
  • Lines, Polylines - dashing may be adjusted, as RW only supports dash lengths that are multiples of stroke width.
  • Polygons, Paths - if these shapes use strokes, they will always be closed.
  • Text elements - except those using tspans.
  • Groups - RW will approximate the structure of SVG files with nested layers.
  • Images - embedded PNG images are imported as raster layers.

Fill/stroke styles

  • Linear and radial gradients can be imported - extended attributes like repeating and mirroring are not supported.
  • Patterns are not imported.
  • If a shape is using both fill and stroke, the stroke can only be a solid color.

Filters

Currently, the only imported filter is gaussian blur and it is only imported if it is applied to a layer (group).
